Injection moulding machines are pivotal in modern manufacturing, revolutionizing the production of plastic parts across a multitude of industries. These machines employ a sophisticated process wherein molten material is injected into a mould cavity, cooled, and solidified to form a desired product. Injection moulding has become synonymous with efficiency, precision, and versatility, making it an indispensable technology in today’s manufacturing landscape.
1.1 Definition and Basic Functionality
Injection moulding machines are specialized devices designed to transform raw materials, typically thermoplastic or thermosetting polymers, into intricate shapes and structures. The process begins with the feeding of granular or powdered material into a heated barrel, where it is melted and injected under high pressure into a mould cavity. Once inside the mould, the material cools and solidifies, taking the shape of the mould cavity. The resulting product is then ejected from the mould, ready for further processing or use.
Select the Perfect Rotary Union for Your Needs or Explore Our Range of Other Products
1.2 Importance and Applications in Manufacturing
The significance of injection moulding machines extends across a diverse array of industries, ranging from automotive and aerospace to consumer goods and medical devices. These machines are capable of producing a wide range of products, including automotive components, electronic enclosures, packaging containers, and medical implants, with unparalleled precision and consistency. The ability to rapidly produce complex parts in large volumes has made injection moulding the preferred choice for manufacturers seeking cost-effective and high-quality solutions.
II. History and Evolution of Injection Moulding Technology
The history of injection moulding technology is marked by a series of innovations and advancements that have transformed the manufacturing landscape over the past century. From humble beginnings to the sophisticated machinery of today, the evolution of injection moulding technology reflects the ingenuity and creativity of engineers and inventors striving to meet the demands of modern industry.
2.1 Early Origins and Milestones
The origins of injection moulding can be traced back to the late 19th century, with the development of early injection moulding machines capable of producing simple celluloid products. However, it wasn’t until the mid-20th century that significant advancements, such as the invention of the reciprocating screw injection moulding machine by James Watson Hendry in 1946, revolutionized the industry and paved the way for mass production of plastic parts.
2.2 Technological Advancements Over Time
Since the introduction of the first injection moulding machines, the technology has undergone continuous refinement and innovation. Key milestones include the development of hydraulic systems for precise control of injection pressure and speed, the integration of computer numerical control (CNC) and computer-aided design (CAD) systems for enhanced automation and part design capabilities, and the adoption of advanced materials and additives to improve product performance and durability. Today, injection moulding machines encompass a wide range of configurations and capabilities, from small desktop units to large-scale production systems, catering to the diverse needs of manufacturers worldwide.
III. Components of an Injection Moulding Machine

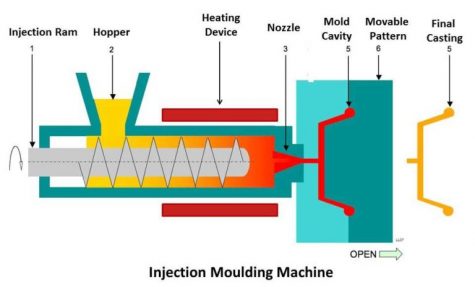

Injection moulding machines consist of several essential components that work in tandem to execute the injection moulding process with precision and efficiency. Understanding the function of each component is crucial for optimizing machine performance and ensuring consistent product quality.
3.1 Main Parts and Their Functions
Injection Unit: The injection unit functions to melt and inject the material into the mold cavity. It comprises a hopper for feeding the raw material, a barrel where the material is melted by heating elements, and a screw or plunger that conveys and injects the molten material into the mould cavity.
Clamping Unit: The clamping unit holds the mould in place and applies the necessary force to keep it closed during injection. It consists of a clamping mechanism, which secures the mould halves together, and a hydraulic or mechanical system for applying and releasing clamping force.
Mould: The mould is the tooling used to create the desired shape of the final product. It consists of two halves, a stationary half (cavity) and a movable half (core), between which the material is injected. The mould is precision-engineered to produce parts with the desired dimensions and surface finish.
Hydraulic System: The hydraulic system provides power for operating the clamping unit, injection unit, and other machine functions. It includes hydraulic pumps, valves, cylinders, and actuators that control the movement of machine components and apply pressure as needed.
Control System: The control system oversees the operation of the injection moulding machine, monitoring parameters such as temperature, pressure, and cycle time. It enables operators to set and adjust machine settings, troubleshoot issues, and ensure consistent production quality.
3.2 Overview of Different Types of Injection Moulding Machines
Vertical Injection Moulding Machines: Vertical machines feature a vertical clamping and injection configuration, making them ideal for applications where floor space is limited. They are commonly used for overmoulding, insert moulding, and molding of precision parts.
Horizontal Injection Moulding Machines: Horizontal machines have a horizontal clamping and injection setup, allowing for easier access to the mould and simplified automation. They are versatile and widely used for producing a wide range of plastic parts.
Hydraulic Injection Moulding Machines: Hydraulic machines utilize hydraulic power for clamping, injection, and other machine functions. They offer high performance, precision, and reliability, making them suitable for a broad range of applications.
IV. Operating Principles of Injection Moulding
Injection moulding operates on several fundamental principles that govern the behaviour of materials under pressure and heat. Understanding these principles is essential for optimizing injection moulding processes and achieving desired product characteristics.
4.1 Fundamental Concepts of Injection Moulding Process
Injection: The material, usually in the form of pellets or granules, is fed into the injection unit, where it is heated and injected into the mould cavity under high pressure.
Cooling and Solidification: After injection, the material quickly cools and solidifies within the mould cavity, taking the shape of the mould.
Ejection: Once the part has solidified, the mould opens, and the part is ejected from the mould cavity, ready for further processing or use.
4.2 Factors Influencing Moulding Performance
Material Properties: The properties of the material being moulded, including its melt flow, viscosity, and thermal stability, significantly influence the moulding process and final part quality.
Process Conditions: Parameters such as injection pressure, injection speed, and cooling time must be carefully controlled to achieve optimal moulding performance and part properties.
Mould Design: The design of the mould, including the gating system, cooling channels, and venting, plays a critical role in determining part quality, cycle time, and production efficiency.
V. Types of Injection Moulding Processes
Injection moulding processes vary based on the specific requirements of the desired product and the materials being used. Understanding the different types of injection moulding processes is essential for selecting the most suitable method for a given application.
5.1 Conventional Injection Moulding
Description: Conventional injection moulding involves the injection of molten material into a mould cavity to produce a solidified part.
Applications: Widely used for producing a wide range of plastic parts, from small components to large, complex shapes.
Advantages: High production efficiency, precise control over part dimensions, and versatility in material selection.
Limitations: Initial tooling costs can be high, and cycle times may vary depending on part complexity.
5.2 Overmoulding and Insert Moulding
Description: Overmoulding and insert moulding involve the injection of material over pre-formed components or inserts to create a composite part.
Applications: Commonly used for adding grips, seals, or decorative elements to products, as well as for encapsulating electronic components.
Advantages: Enhanced functionality, improved part strength and durability, and reduced assembly steps.
Limitations: Requires precise alignment of inserts and additional processing steps, leading to increased cycle times and complexity.
5.3 Multi-Shot Injection Moulding
Description: Multi-shot injection moulding allows for the injection of multiple materials or colors into a single mould cavity in successive shots.
Applications: Suitable for producing multi-component parts with different material properties or aesthetic features.
Advantages: Reduced assembly requirements, improved part quality, and enhanced design flexibility.
Limitations: Higher initial investment in tooling and machinery, as well as increased complexity in process setup and validation.
5.4 Micro Injection Moulding
Description: Micro injection moulding involves the production of small, precise components with dimensions on the microscale.
Applications: Commonly used in industries such as medical devices, electronics, and microfluidics.
Advantages: High precision, tight tolerances, and the ability to produce intricate features.
Limitations: Challenges in material handling, tooling design, and process control due to the small size of components.
VI. Materials Used in Injection Moulding
Injection moulding is highly versatile and can accommodate a wide range of materials, each with its own unique properties and characteristics. Understanding the properties and applications of different materials is essential for optimizing injection moulding processes and achieving desired product performance.
6.1 Thermoplastics
Description: Thermoplastics are polymers that soften when heated and solidify when cooled, making them ideal for injection moulding processes.
Applications: Widely used in industries such as automotive, consumer goods, and packaging for their versatility, durability, and ease of processing.
Examples: Polyethylene (PE), polypropylene (PP), polystyrene (PS), acrylonitrile butadiene styrene (ABS), polyvinyl chloride (PVC).
6.2 Thermosets
Description: Thermosetting polymers undergo irreversible curing reactions upon heating, resulting in a rigid, crosslinked structure.
Applications: Commonly used for high-temperature applications requiring excellent dimensional stability and chemical resistance.
Examples: Epoxy resins, phenolic compounds, polyester resins, urea-formaldehyde resins.
6.3 Elastomers
Description: Elastomers are polymers that exhibit rubber-like elasticity and can return to their original shape after deformation.
Applications: Used in applications requiring flexibility, resilience, and impact resistance, such as seals, gaskets, and soft-touch grips.
Examples: Silicone rubber, ethylene propylene diene monomer (EPDM), natural rubber, styrene-butadiene rubber (SBR).
6.4 Bioplastics
Description: Bioplastics are derived from renewable biomass sources and offer potential environmental benefits compared to traditional petroleum-based plastics.
Applications: Increasingly used in packaging, consumer goods, and automotive applications as sustainable alternatives to conventional plastics.
Examples: Polylactic acid (PLA), polyhydroxyalkanoates (PHA), starch-based plastics, cellulose-based plastics.
6.5 Composite Materials
Description: Composite materials consist of a combination of two or more materials, each contributing distinct properties to the final product.
Applications: Used in industries such as aerospace, automotive, and sporting goods for their lightweight, high strength-to-weight ratio, and tailored performance characteristics.
Examples: Glass fiber-reinforced plastics (GFRP), carbon fiber-reinforced plastics (CFRP), metal matrix composites (MMC), ceramic matrix composites (CMC).
VII. Applications of Injection Moulding Machines Across Industries
Injection moulding machines are utilized across various industries due to their versatility, precision, and efficiency in producing a wide range of plastic parts. Understanding the diverse applications of injection moulding machines provides insight into their significance in modern manufacturing processes.
7.1 Automotive Industry
Interior Components: Injection moulding machines are used to produce interior components such as dashboards, door panels, and seating components, offering durability, aesthetic appeal, and cost-effectiveness.
Exterior Parts: Automotive exterior parts like bumpers, fenders, and grilles are manufactured using injection moulding machines, providing impact resistance, weatherability, and design flexibility.
Under-the-Hood Components: Engine components, fluid reservoirs, and other under-the-hood parts are commonly produced using injection moulding machines, offering heat resistance, chemical resistance, and dimensional stability.
7.2 Consumer Goods and Electronics
Electronic Enclosures: Injection moulding machines are used to produce plastic enclosures for electronic devices such as smartphones, laptops, and home appliances, providing protection, aesthetics, and functionality.
Household Products: Injection moulding is employed in the production of various household products including kitchenware, toys, and personal care items, offering affordability, customization, and design versatility.
Packaging Containers: Plastic packaging containers for food, beverages, cosmetics, and pharmaceuticals are manufactured using injection moulding machines, providing lightweight, hygienic, and cost-effective solutions.
VIII. Advantages and Limitations of Injection Moulding Technology
Injection moulding technology offers numerous advantages, but it also comes with certain limitations that need to be considered in the manufacturing process. Understanding these pros and cons is crucial for optimizing the use of injection moulding machines and achieving desired outcomes in product development and production.
8.1 Benefits of Injection Moulding Processes
High Efficiency: Injection moulding machines offer high production rates and minimal material wastage, resulting in cost-effective manufacturing processes.
Precision and Consistency: Injection moulding enables the production of complex parts with tight tolerances and consistent quality, ensuring reliable performance and functionality.
Design Flexibility: The versatility of injection moulding allows for the production of parts with intricate geometries, undercuts, and overmoulding, meeting diverse design requirements.
8.2 Challenges and Constraints
Initial Tooling Costs: The cost of designing and fabricating moulds for injection moulding can be significant, particularly for complex parts or low-volume production.
Material Selection and Compatibility: Certain materials may be challenging to process or may require specialized equipment and processing conditions, limiting material options for specific applications.
Cycle Time and Production Efficiency: Longer cycle times for cooling and ejection phases may impact overall production efficiency and throughput, particularly for high-volume production runs.
IX. Innovations and Recent Developments in Injection Moulding Technology
The field of injection moulding technology continues to evolve with advancements in materials science, machinery design, and process optimization. Understanding these innovations and developments is crucial for staying competitive and maximizing the capabilities of injection moulding machines in modern manufacturing.
9.1 Emerging Trends and Technologies
Additive Manufacturing Integration: The integration of additive manufacturing techniques with injection moulding processes allows for the production of complex geometries and customized features, offering new possibilities for product design and functionality.
Industry 4.0 and Digitalization: Adoption of Industry 4.0 principles and digitalization technologies, such as IoT (Internet of Things) sensors, data analytics, and machine learning algorithms, enables real-time monitoring, predictive maintenance, and optimization of injection moulding processes.
Advanced Materials Development: Ongoing research and development efforts focus on the development of advanced materials with enhanced properties, such as biodegradability, conductivity, and flame retardancy, expanding the application scope of injection moulding technology.
9.2 Case Studies of Innovative Applications
Medical Device Manufacturing: Injection moulding technology is increasingly utilized in the production of medical devices and implants, such as surgical instruments, drug delivery systems, and prosthetic components, due to its precision, biocompatibility, and scalability.
Automotive Lightweighting: Lightweighting initiatives in the automotive industry drive the adoption of injection moulding for producing lightweight and cost-effective components, including interior trim, structural panels, and under-the-hood parts, contributing to fuel efficiency and emissions reduction.
Smart Packaging Solutions: Injection moulding is employed in the development of smart packaging solutions, integrating sensors, RFID tags, and NFC (Near Field Communication) technology into packaging containers for enhanced product traceability, tamper detection, and consumer engagement.
X. Maintenance and Troubleshooting of Injection Moulding Machines
Proper maintenance and timely troubleshooting are essential for ensuring the reliable operation and longevity of injection moulding machines. Understanding common maintenance practices and troubleshooting techniques is critical for minimizing downtime, optimizing performance, and preventing costly equipment failures.
10.1 Routine Maintenance Practices
Cleaning and Lubrication: Regular cleaning and lubrication of machine components, such as screws, barrels, and moulds, prevent material buildup, reduce friction, and extend the lifespan of critical parts.
Inspection and Calibration: Periodic inspection and calibration of machine settings, including temperature, pressure, and cycle time, ensure consistent performance and quality output.
10.2 Common Issues and Solutions
Injection Moulding Defects: Identification and resolution of common injection moulding defects, such as short shots, sink marks, flash, and warping, require troubleshooting techniques such as adjusting injection parameters, optimizing cooling time, and modifying mould designs.
Equipment Malfunctions: Diagnosis and rectification of equipment malfunctions, such as hydraulic system leaks, electrical failures, and sensor errors, necessitate thorough troubleshooting procedures, including visual inspection, component replacement, and system recalibration.
XI. Safety Considerations in Injection Moulding Operations
Injection moulding operations involve various hazards that must be addressed to ensure a safe working environment for operators and personnel. Implementing appropriate safety measures and protocols is essential for preventing accidents, injuries, and workplace incidents.
11.1 Workplace Safety Precautions
Machine Guarding: Ensuring that injection moulding machines are equipped with adequate guarding, such as safety interlocks, shields, and barriers, to prevent access to moving parts and hot surfaces during operation.
Personal Protective Equipment (PPE): Providing operators and personnel with appropriate PPE, including safety glasses, gloves, aprons, and hearing protection, to minimize the risk of injury from molten material, sharp edges, and loud noises.
Ergonomic Design: Designing workstations and ergonomic aids to reduce ergonomic hazards, such as repetitive motion injuries and musculoskeletal strains, associated with manual handling and machine operation.
11.2 Hazard Mitigation Strategies
Risk Assessment: Conducting thorough risk assessments of injection moulding processes and equipment to identify potential hazards, assess risk levels, and implement control measures to mitigate risks.
Training and Education: Providing comprehensive training and education programs for operators and personnel on safe operating procedures, hazard recognition, emergency response, and proper use of equipment and PPE.
Emergency Preparedness: Establishing emergency response protocols, including evacuation procedures, first aid training, and access to emergency equipment such as fire extinguishers and eye wash stations, to ensure timely and effective response to workplace incidents.
XII. Environmental Impacts of Injection Moulding Processes
Injection moulding processes can have significant environmental impacts due to energy consumption, material waste, and emissions generated during production. Implementing sustainable practices and technologies is essential for minimizing environmental footprint and promoting eco-friendly manufacturing.
12.1 Energy Consumption
Energy-Efficient Equipment: Investing in energy-efficient injection moulding machines and auxiliary equipment, such as servo-driven systems, variable-speed pumps, and energy recovery systems, to reduce energy consumption and operating costs.
Process Optimization: Optimizing injection moulding processes through process monitoring, parameter tuning, and material selection to minimize energy-intensive operations and improve overall efficiency.
12.2 Waste Management and Recycling
Material Recycling: Implementing recycling programs for scrap material and post-consumer waste generated during injection moulding operations, including regrinding, reprocessing, and reuse of recycled materials in production.
Closed-Loop Systems: Implementing closed-loop systems for material handling and recycling within the manufacturing facility to minimize waste generation and promote circular economy principles.
XIII. Future Outlook for Injection Moulding Machines
Technological advancements, industry trends, and evolving market demands collectively shape the trajectory of injection moulding machines in the future.Anticipating future developments and opportunities is crucial for manufacturers to stay ahead of the curve and capitalize on emerging trends in injection moulding technology.
13.1 Predictions for Industry Trends
Advanced Materials Integration: Continued development and integration of advanced materials, including biodegradable polymers, composites, and high-performance thermoplastics, into injection moulding processes to meet evolving customer demands for sustainable and high-performance products.
Digitalization and Smart Manufacturing: Increasing adoption of digitalization technologies, such as IoT (Internet of Things), artificial intelligence, and machine learning, to enable smart manufacturing solutions for real-time monitoring, predictive maintenance, and data-driven optimization of injection moulding processes.
Customization and Personalization: Growing demand for customized and personalized products driving the adoption of flexible manufacturing processes, including on-demand production, small-batch manufacturing, and mass customization capabilities enabled by injection moulding technology.
13.2 Potential Areas of Growth and Innovation
Medical and Healthcare Applications: Expanding opportunities in the medical and healthcare sectors for injection moulding machines, particularly in the production of medical devices, implants, and pharmaceutical packaging, driven by advancements in materials, design, and regulatory requirements.
Automotive Lightweighting: Continued focus on lightweighting initiatives in the automotive industry, with injection moulding playing a key role in the production of lightweight and cost-effective components to improve fuel efficiency, reduce emissions, and enhance vehicle performance.
Additive Manufacturing Integration: Integration of additive manufacturing techniques, such as 3D printing and hybrid manufacturing, with injection moulding processes to enable complex geometries, part consolidation, and rapid prototyping capabilities for enhanced design flexibility and time-to-market advantages.
XV. Deublin Rotary Union for the Plastic Industry and Injection Moulding
Deublin rotary unions are instrumental components in the plastic industry, particularly in injection moulding processes, where efficient fluid transfer and temperature control are paramount for achieving high-quality plastic parts. Understanding the role and benefits of Deublin rotary unions in the plastic industry provides insight into their significance in enhancing productivity, reliability, and performance in injection moulding operations.
15.1 Enhancing Fluid Transfer Efficiency
Continuous Cooling and Heating: Deublin rotary unions enable the continuous transfer of cooling water or heating media to injection moulding machine components, such as barrels and moulds, ensuring consistent temperature control throughout the moulding process. This helps prevent material degradation, optimize cycle times, and improve part quality.
Sealed Fluid Transfer: With precision-engineered seals and robust construction, Deublin rotary unions provide reliable and leak-free fluid transfer, minimizing downtime and maintenance costs associated with fluid leakage and contamination in injection moulding operations.
15.2 Optimizing Machine Performance
Reduced Friction and Wear: Deublin rotary unions feature low-friction bearings and high-quality materials, resulting in smooth rotation and reduced wear on machine components. This extends the lifespan of injection moulding machines, reduces maintenance requirements, and enhances overall machine performance.
Customized Solutions: Deublin offers a range of rotary union configurations, sizes, and materials to meet the specific requirements of injection moulding applications. Whether it’s high-pressure coolant systems, corrosive-resistant materials, or specialized mounting options, Deublin rotary unions can be customized to optimize machine performance and productivity.
15.3 Ensuring Process Reliability and Quality
Precision Temperature Control: By enabling precise control over coolant flow and temperature, Deublin rotary unions ensure uniform cooling and heating of injection moulding machine components, resulting in consistent part dimensions, reduced warp, and improved surface finish of plastic parts.
Minimized Downtime: With their durable construction and reliable performance, Deublin rotary unions help minimize unplanned downtime in injection moulding operations, allowing manufacturers to maintain high levels of productivity and meet production deadlines.
15.4 Supporting Sustainable Manufacturing Practices
Energy Efficiency: Deublin rotary unions contribute to energy efficiency in injection moulding processes by optimizing fluid flow and temperature control, reducing energy consumption associated with heating and cooling operations.
Material Conservation: By minimizing fluid leakage and contamination, Deublin rotary unions help conserve coolant and heating media, reducing material waste and environmental impact in injection moulding operations.
Deublin rotary unions play a crucial role in the plastic industry, particularly in injection moulding processes, by facilitating efficient fluid transfer, temperature control, and process reliability. With their advanced design, precision engineering, and customizable solutions, Deublin rotary unions contribute to enhancing productivity, quality, and sustainability in injection moulding operations, ensuring manufacturers remain competitive in today’s dynamic market landscape.
Frequently Asked Questions (FAQs)
Q: What is injection moulding?
Imagine shaping molten plastic like clay, only with incredible precision and efficiency. That’s injection moulding in a nutshell! Plastic granules are melted, injected into a mold, and cooled, giving birth to countless plastic parts we use daily.
Q: What materials can it handle?
From the versatile thermoplastics in your water bottle to the sturdy thermosets in your headphones, injection moulding embraces a wide variety of materials. Elastomers for phone cases, bioplastics for eco-friendly packaging, and even composites can be moulded into diverse shapes.
Q: Why choose injection moulding?
This powerhouse process boasts several advantages:
- High production rates: Crank out parts quickly and efficiently, meeting even the most demanding needs.
- Tight tolerances: Achieve precise dimensions, ensuring consistent quality and functionality.
- Design flexibility: Unleash your creativity with intricate shapes and complex geometries.
- Material versatility: Work with a diverse range of materials to suit your specific requirements.
- Minimal waste: Enjoy an eco-friendly edge with minimal material loss during production.
Q: What’s inside the machine?
Think of an injection moulding machine as a high-tech orchestra. The key players are:
- Injection unit: Melts and injects the plastic material.
- Clamping unit: Holds the mold securely during the process.
- Mold: The maestro, shaping the molten plastic into your desired form.
- Hydraulic system: Provides the power to operate the machine.
- Control system: The conductor, overseeing and optimizing every step.
Q: Where is it used?
From the intricate components in your car to the medical devices used in healthcare, injection moulding’s applications are vast. Explore its presence in:
- Automotive: Engine parts, dashboards, and more.
- Electronics: Phone cases, circuit boards, and connectors.
- Consumer goods: Toys, furniture, and household items.
- Medical devices: Syringes, prosthetics, and medical instruments.
- Packaging: Bottles, containers, and food packaging.
- Aerospace: Lightweight aircraft components and other applications.
Q: What can go wrong?
While injection moulding is reliable, some potential flaws can occur:
- Short shots: Incomplete parts due to insufficient material.
- Sink marks: Dimples caused by uneven cooling.
- Flash: Excess plastic overflowing the mold.
- Warping: Deformations due to uneven shrinkage or stress.
- Burn marks: Discoloration from overheated material.
- Flow lines: Visible lines from plastic flow patterns.
These can often be addressed by optimizing process parameters or mold design.
Q: How can we optimize our machine:
Get the most out of your injection moulding machine by:
- Choosing the right material: Match the material to your application’s needs.
- Fine-tuning parameters: Adjust factors like temperature and pressure for optimal results.
- Regular maintenance: Keep your machine in top condition for efficient performance.
- Embracing advanced technologies: Utilize process monitoring and control tools for further optimization.
Q: What safety measures should one take?
Working with injection moulding machines requires vigilance:
- Machine guarding: Ensure proper barriers are in place.
- Personal protective equipment (PPE): Wear required safety gear.
- Ergonomic design: Minimize fatigue and injury risks.
- Risk assessment: Identify and address potential hazards.
- Safe operating procedures: Train operators thoroughly.
- Emergency preparedness: Be ready for any unforeseen situations.
XIV. Conclusion
Injection moulding machines play a vital role in modern manufacturing, offering versatility, precision, and efficiency in the production of plastic parts across various industries. As technology continues to evolve and market demands shift, staying abreast of emerging trends, embracing digitalization, and adopting sustainable practices will be key to unlocking new opportunities for growth and innovation in the field of injection moulding technology.
