You don’t know what a rotary joint (or rotary union) is? Let’s understand in simple language.
Imagine a scenario where you have two components, one stationary and the other rotating, and they need to communicate or transfer something between them. This could be fluids, gases, or even electrical signals. How do we achieve this seamless transfer without interrupting the rotation?
That’s where rotary joints come into play.

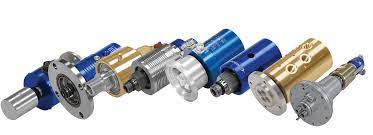

Rotary joints, also known as rotary couplings, rotary unions, or swivel joints, are essentially mechanical devices that allow for the smooth transfer of fluids and signals between stationary and rotating parts. They act as connectors, bridging the gap between two components that have different motion characteristics. These ingenious devices find applications in various industries, including manufacturing, automotive, aerospace, and marine sectors.
Explore our exclusive range of Rotary Joints on our product page.
How do they work?
The design principles of rotary joints are carefully engineered to ensure reliable and efficient operation while accommodating rotational movement.
They consist of two main components:
An inner rotating element and an outer stationary element.
The inner element rotates along with the rotating part, while the outer element remains fixed in place and connects to the stationary piping or conduit. The two elements are sealed together using packing or seals to prevent leaks and maintain the integrity of the fluid or electrical transfer.
What factors influence the design of rotary joints?
Pressure and temperature requirements are crucial considerations in determining the appropriate materials and sealing mechanisms. The type of media being transferred, whether it’s fluids, gases, or electrical signals, also affects the design. Additionally, considerations such as rotational speed, torque, and size restrictions impact the overall design and material selection.
Rotary joints come in various types, each tailored to specific applications and media. Hydraulic rotary joints are designed for the transfer of hydraulic fluids, while pneumatic rotary joints facilitate the flow of compressed air or gases. Water rotary joints and steam rotary joints handle high-temperature fluids, and electrical rotary joints, also known as slip rings, transmit electrical power or signals across rotating interfaces.
In the following sections of this article, we will explore the working mechanisms, materials used, applications, and future trends of rotary joints. Join me as we uncover the inner workings of these incredible devices and their significant contributions to seamless fluid and signal transfer in rotating systems.
Basic Components and Construction
Rotary joints consist of specific components and construction methods that contribute to their design and functionality. Understanding these elements is essential for comprehending the principles behind their operation.
Components
Rotary joints are composed of two primary elements:
Inner Rotating Element: This component, also known as the rotor or rotating union, transfers fluids or signals and rotates along with the system. It is designed to allow the passage of media such as liquids, gases, or electrical signals through its internal channels.
Outer Stationary Element: The outer stationary element, also called the stator or stationary union, remains fixed in place and connects to the stationary piping or conduit. It provides a stable mounting point for the rotary joint and ensures a secure connection with the system.
Construction
The construction of rotary joints involves various considerations and features, particularly in terms of sealing mechanisms.
Sealing Mechanisms
Sealing mechanisms play a critical role in maintaining a leak-free connection within rotary joints. These mechanisms prevent the media being transferred from escaping or contaminating other parts of the system. Different types of sealing mechanisms are utilized, including
- O-rings: O-rings are circular elastomeric seals typically made of materials like rubber or silicone. They are placed in a groove or recess within the rotary joint and create a tight seal when compressed. O-rings are commonly used in rotary joints due to their reliability, cost-effectiveness, and wide range of available materials.
- Lip Seals: Lip seals, also known as radial shaft seals or oil seals, feature a flexible lip that makes contact with the rotating surface of the inner element. The lip provides a barrier against media leakage and contamination. Lip seals are often used in applications where the media being transferred is in liquid form or where higher-pressure differentials are present.
- Mechanical Seals: Mechanical seals consist of rotating and stationary parts with a barrier fluid in between. These seals offer high reliability and can withstand demanding operating conditions, including high pressures and temperatures. They are commonly used in applications involving aggressive media or when higher levels of sealing performance are required.
- Labyrinth Seals: Labyrinth seals utilize a series of grooves and ridges to create a tortuous path for the fluid. This design prevents the media from escaping by creating multiple barriers and obstacles. Labyrinth seals are effective in controlling leakage and are often used in applications where the media being transferred is in gas or vapor form.
Factors Influencing Design
The design of rotary joints is significantly influenced by various factors. By considering these factors, engineers can ensure optimal performance and reliability in rotating systems.
Pressure and Temperature
Design considerations for pressure and temperature are crucial in the development of rotary joints. Factors to consider include:
- High-pressure conditions and elevated temperatures require appropriate design measures to ensure the rotary joint can withstand these operating conditions.
- Material selection becomes critical to ensure the components can handle the desired pressure and temperature ranges without compromising the integrity of the joint.
- The choice of sealing mechanisms must be compatible with the media, pressure, and temperature requirements to maintain a reliable seal.
Media Type
The type of media being transferred through the rotary joint affects the design considerations. Key factors include:
Different media, such as hydraulic fluids, compressed air, water, steam, or electrical signals, have varying requirements in terms of compatibility, flow rates, and insulation needs.
The design of the rotary joint must accommodate these specific requirements to ensure efficient and reliable transfer of the media.
Material selection becomes critical to ensure compatibility with the media and to prevent corrosion or contamination.
Rotational Speed and Torque
Rotational speed and torque applied to the rotary joint are significant factors to consider in the design process. Key considerations include:
- Higher rotational speeds require careful consideration of bearing design, lubrication methods, and balancing to minimize wear and ensure smooth operation.
- The selection of appropriate materials and components capable of handling the applied forces is essential to prevent premature failure or damage.
- Dynamic balancing may be necessary to minimize vibration and maintain the stability of the rotary joint at high speeds.
Size Restrictions
Space constraints within the system can impact the design of rotary joints. Key factors include:
- The size of the rotary joint must be carefully considered to ensure it fits within the available space while maintaining its functionality.
- Innovative design solutions may be required to accommodate size restrictions without compromising the performance and reliability of the joint.
Maintenance and Reliability
Maintenance and reliability considerations are vital for the long-term performance of rotary joints. Factors to consider include:
- Easy accessibility for inspection and maintenance is crucial to ensure timely identification and resolution of any issues.
- The design should allow for easy seal replacement, minimizing downtime and maintenance costs.
- Robust construction, with appropriate materials and reinforcements, contributes to the overall reliability and longevity of the rotary joint.
By carefully considering these factors, engineers can design rotary joints that meet the specific requirements of various applications. The selection of suitable materials, sealing mechanisms, and design techniques ensures efficient fluid or signal transfer and reliable operation in rotating systems. Continuous advancements in technology further enhance the performance and capabilities of rotary joints, making them indispensable components across numerous industries.
Types of Rotary Joints
Moving beyond the basic design principles, rotary joints come in various types, each specialized for specific applications. Let’s delve into the distinct characteristics and applications of hydraulic, pneumatic, water and steam, and electrical rotary joints.
Hydraulic Rotary Joints
Hydraulic rotary joints serve a critical role in systems requiring the transfer of hydraulic fluids. These joints facilitate the seamless flow of liquids, such as hydraulic oils, between stationary and rotating components. The design considerations for hydraulic rotary joints involve factors like pressure, viscosity, and compatibility with hydraulic fluids.
Applications:
- Hydraulic Machinery: Used in hydraulic presses, injection molding machines, and hydraulic cylinders.
- Construction Equipment: Integrated into heavy machinery like excavators and cranes.
- Manufacturing Processes: Employed in various manufacturing applications requiring precise hydraulic control.
Pneumatic Rotary Joints
Pneumatic rotary joints cater to systems utilizing compressed air or gases. These joints ensure the efficient transfer of pneumatic energy between stationary and rotating components. Considerations for pressure, air quality, and flow rates play a crucial role in their design.
Applications:
- Pneumatic Tools: Integrated into pneumatic drills, grinders, and other tools.
- Packaging Machinery: Used in packaging systems for pneumatic control of various processes.
- Robotics: Employed in robotic systems that utilize compressed air for movement and control.
Water and Steam Rotary Joints
Water and steam rotary joints are designed to handle high-temperature fluids. These joints play a vital role in systems requiring the transfer of water or steam between stationary and rotating components. Factors such as temperature resistance, sealing efficiency, and material compatibility are critical in their design.
Applications:
- Steam Turbines: Essential components in power generation systems utilizing steam turbines.
- Textile Industry: Used in dyeing and finishing processes that involve high-temperature water.
- Paper Manufacturing: Integrated into paper drying systems that utilize steam.
Electrical Rotary Joints (Slip Rings)
Unlike their fluid counterparts, electrical rotary joints, commonly known as slip rings, specialize in transmitting electrical power or signals across rotating interfaces. These joints are crucial in applications where uninterrupted electrical connectivity is essential.
Applications:
- Wind Turbines: Facilitate the transmission of electrical signals and power in rotating parts.
- Robotics and Automation: Used in rotating joints of robotic arms for seamless electrical connectivity.
- Medical Imaging Equipment: Integrated into devices like MRI machines for continuous signal transmission.
Working Mechanisms of Rotary Joints
Understanding how rotary joints facilitate the transfer of fluids and signals is essential to appreciate their functionality. Let’s explore the intricate working mechanisms involved in fluid transfer and electrical signal transfer.
Fluid Transfer Mechanisms
The fluid transfer mechanisms of rotary joints are designed to ensure the seamless flow of liquids or gases between stationary and rotating components. Key considerations include:
- Channelling: Internal channels within the rotating element allow the controlled flow of fluids.
- Sealing: The sealing mechanisms discussed earlier prevent leakage and maintain the integrity of the fluid transfer.
- Lubrication: Proper lubrication is essential to minimize friction and wear, ensuring smooth operation over extended periods.
Applications:
- Coolant Systems: Used in machining processes to transfer coolant fluids in industrial settings.
- Automotive Transmissions: Facilitate the transfer of hydraulic fluids for smooth gear shifts.
- Printing Industry: Employed in printing presses for the transfer of inks and solvents.
Electrical Signal Transfer Mechanisms
In electrical rotary joints, or slip rings, the focus shifts to transmitting electrical signals or power. The mechanisms involved ensure uninterrupted connectivity while accommodating rotational movement. Key considerations include:
- Brushes and Contacts: Conductive brushes maintain contact with rotating rings, allowing the transfer of electrical signals.
- Insulation: Insulating materials prevent short circuits and ensure the reliability of electrical transfer.
- Precision: Tight tolerances and precise engineering are crucial to maintaining a stable electrical connection.
Applications:
- Video Surveillance Systems: Utilized in rotating cameras for continuous video signal transmission.
- Military Radar Systems: Integrated into rotating radar components for seamless data transmission.
- Broadcast Equipment: Used in rotating antennas and cameras for uninterrupted signal transmission.
Materials Used in Rotary Joints
The materials employed in rotary joint construction play a pivotal role in determining their performance and longevity. Let’s explore the significance of sealing materials and housing materials in rotary joint design.
Sealing Materials
Sealing materials are critical components that ensure a leak-free connection within rotary joints. The choice of sealing material depends on factors such as media type, temperature, and pressure. Common sealing materials include:
- Nitrile Rubber: Suitable for general-purpose applications, offering good resistance to oils and fuels.
- Fluoroelastomers (Viton): Resistant to high temperatures and various chemicals, making them ideal for demanding applications.
- Polyurethane: Known for its flexibility and abrasion resistance, suitable for dynamic sealing applications.
Applications:
- Aerospace: Sealing hydraulic fluids in aircraft systems with Viton seals.
- Chemical Processing: Utilizing polyurethane seals for sealing corrosive liquids.
- Food and Beverage: Employing FDA-compliant seals in rotary joints for food processing.
Housing Materials
The housing materials of rotary joints contribute to their structural integrity and resistance to environmental factors. Considerations for durability, corrosion resistance, and weight play a role in selecting housing materials. Common options include:
- Stainless Steel: Known for its corrosion resistance, stainless steel is often used in rotary joints exposed to harsh environments.
- Aluminum: Lightweight and corrosion-resistant, aluminum is suitable for applications where weight is a crucial factor.
- Brass: Combining durability and corrosion resistance, brass is chosen for its balance of strength and weight.
Applications:
- Marine Environments: Utilizing stainless steel housing for rotary joints in shipboard systems.
- Aerospace Applications: Employing lightweight aluminum housing in aircraft hydraulic systems.
- Industrial Machinery: Choosing brass housing for its durability in various manufacturing applications.
Applications of Rotary Joints
Rotary joints find extensive applications across diverse industries, contributing to the seamless operation of rotating systems. Let’s explore their roles in the manufacturing, automotive, aerospace, and marine sectors.
Manufacturing Industry
In the manufacturing industry, rotary joints play a crucial role in ensuring the efficiency of various processes. Applications include:
- Metal Cutting: Used in machining centers to transfer coolant fluids for temperature control and chip evacuation.
- Printing Presses: Facilitate the transfer of inks and solvents in high-speed printing processes.
- Textile Machinery: Employed in dyeing and finishing processes to handle steam or hot water transfer.
Automotive Industry
The automotive sector relies on rotary joints for various applications, contributing to the smooth operation of vehicles. Applications include:
- Power Steering Systems: Hydraulic rotary joints assist in the transfer of hydraulic fluid for power steering.
- Transmission Systems: Facilitate the transfer of hydraulic fluids for smooth gear shifts in automatic transmissions.
- Engine Cooling: Used in coolant systems to transfer fluids for temperature regulation.
Aerospace Industry
In the aerospace industry, where precision and reliability are paramount, rotary joints play essential roles in critical applications. Applications include:
- Aircraft Hydraulic Systems: Hydraulic rotary joints ensure the transfer of hydraulic fluids in aircraft control systems.
- Landing Gear Systems: Employed in systems that transfer hydraulic fluids for landing gear operation.
- Environmental Control Systems: Facilitate the transfer of air and fluids in aircraft environmental control systems.
Marine Industry
The demanding marine environment requires robust and reliable components, making rotary joints integral to marine applications. Applications include:
- Shipboard Hydraulic Systems: Hydraulic rotary joints transfer fluids in shipboard hydraulic systems.
- Steering Systems: Used in marine steering systems for the transfer of hydraulic fluids.
- Cargo Handling Equipment: Facilitate fluid transfer in various cargo handling applications aboard ships.
Advancements and Future Trends
As technology evolves, rotary joints continue to undergo advancements to meet the increasing demands of diverse industries. Let’s explore the latest trends shaping the future of rotary joints.
Miniaturization and Integration
Advancements in miniaturization and integration aim to make rotary joints more compact and efficient. This trend is particularly crucial in applications with limited space, such as robotics and medical devices.
Enhanced Sealing Technologies
Ongoing research and development focus on improving sealing technologies to enhance the reliability and lifespan of rotary joints. Innovations in materials and design contribute to better performance under challenging conditions.
High-Speed and High-Power Applications
The demand for rotary joints capable of handling high-speed and high-power applications is growing. Advancements in materials, lubrication, and design aim to address the challenges posed by increased speeds and power requirements.
Industry 4.0 Integration
Integration with Industry 4.0 principles, including connectivity and data exchange, is a prominent trend. Smart rotary joints equipped with sensors and communication capabilities enable real-time monitoring and predictive maintenance.
Frequently Asked Questions
1. What is a Rotary joint?
A Rotary joint, also known as a rotary union or swivel joint, is a mechanical device that allows the transfer of fluids (liquids or gases) between a stationary system and a rotating system. It enables the seamless flow of media such as water, air, hydraulic fluid, or steam between two parts of a machine, where one part rotates relative to the other.
2. Where are Rotary joints used?
Rotary joints find applications in various industries, including manufacturing, automotive, printing, packaging, textiles, and more. They are commonly used in machinery where continuous rotation is required, such as in rotary tables, indexing tables, printing presses, and wind turbines.
3. How does a Rotary joint work?
A Rotary joint typically consists of a stationary housing and a rotating component. The stationary housing is connected to the fixed part of the machine, while the rotating component is attached to the part that moves. Seals within the union prevent the leakage of fluids, allowing the transfer of media from the stationary to the rotating side.
4. What types of media can Rotary joints handle?
Rotary joints are versatile and can handle a wide range of media, including water, air, hydraulic oil, steam, coolant, and various gases. The specific type of Rotary joint selected depends on the application and the properties of the media being transferred.
5. How do you choose the right Rotary joint for a specific application?
Choosing the right Rotary joint involves considering factors such as the type of media, pressure and temperature requirements, rotational speed, connection size, and the number of channels needed. Consulting with a knowledgeable supplier or engineer is crucial to selecting the most suitable Rotary joint for a particular application.
6. What maintenance is required for Rotary joints?
Regular maintenance is essential to ensure the proper functioning of Rotary joints. This may include inspecting seals, checking for wear and tear, and lubricating moving parts. Maintenance intervals depend on the operating conditions and the manufacturer’s recommendations.
7. Can Rotary joints handle high-pressure applications?
Yes, many Rotary joints are designed to handle high-pressure applications. They come in a variety of pressure ratings to accommodate different industrial needs. It’s important to choose a Rotary joint with the appropriate pressure rating for the specific application.
8. Are there special considerations for handling abrasive media?
When dealing with abrasive media, it’s important to choose a Rotary joint with wear-resistant materials and proper sealing mechanisms. Regular maintenance is crucial to monitor wear and replace components as needed.
9. Can Rotary joints handle high rotational speeds?
Rotary joints are available in various designs to accommodate different rotational speeds. When selecting a Rotary joint, it’s important to consider the maximum rotational speed it can handle without compromising performance or causing damage.
10. Are there customized Rotary joint solutions available?
Yes, many manufacturers offer customized Rotary joints to meet specific application requirements. This may include modifications to materials, seals, sizes, and configurations to ensure optimal performance in unique industrial settings. Consulting with the manufacturer or a qualified engineer can help in designing a tailored solution.
Conclusion
In conclusion, rotary joints, with their intricate design principles and diverse applications, are indispensable components in numerous industries. From manufacturing and automotive to aerospace and marine sectors, these devices play a pivotal role in ensuring the seamless transfer of fluids and signals between stationary and rotating parts.
As we move into the future, advancements in miniaturization, enhanced sealing technologies, and integration with Industry 4.0 are set to shape the next generation of rotary joints, further solidifying their importance in the realm of rotating systems. Join us on this journey of exploration and innovation, where the world of rotary joints continues to spin toward new horizons.
